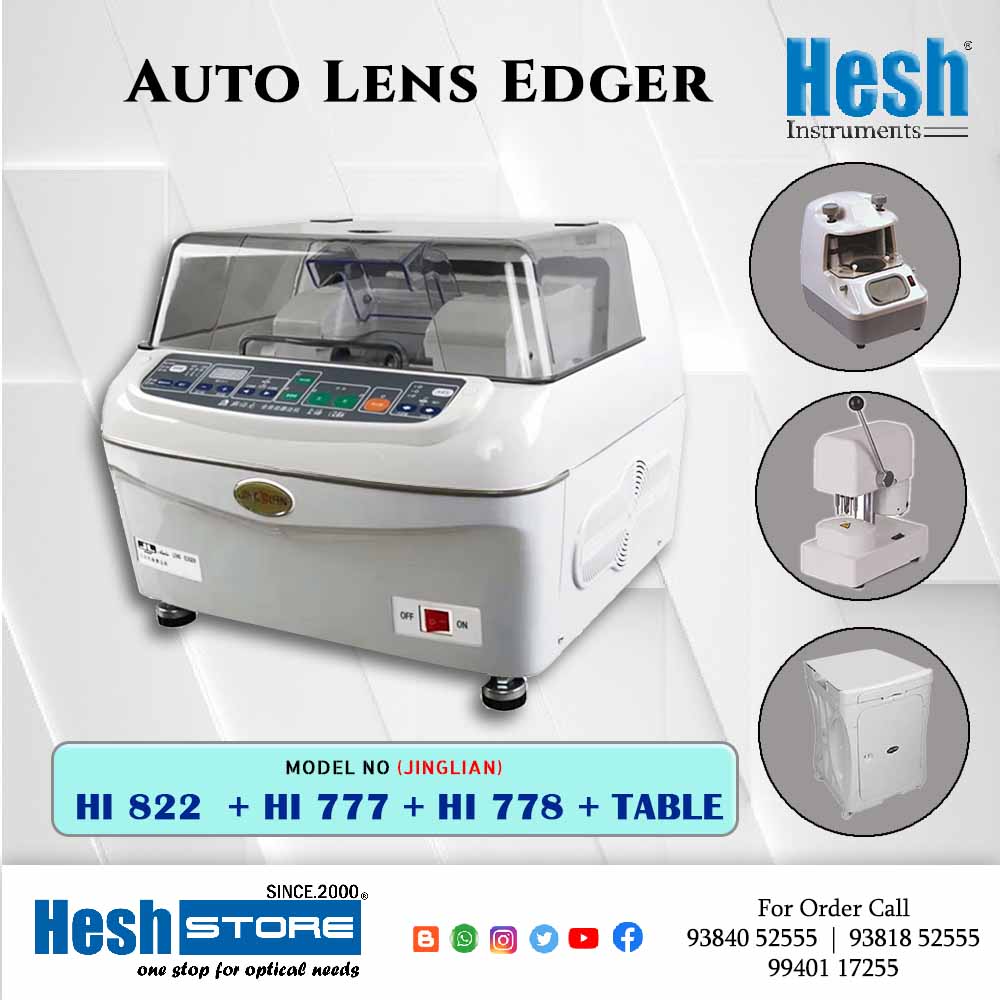

Jinglian Auto Lens Edger Set - Hi 822 + Hi 777 + Hi 778

AUTO LENS EDGER

Features :-

• THE LATEST STYLE : To be combined with excellence of
   all previous styles and obtains special and original design.
   Four choices of two side of panel color.
   “Gray / Red / Black / Orange"
• PROFESSIONAL GRINDING WHEEL : Standard scheme of four grinding wheels - PC (Rough wheel) ,Glass (Rough wheel) , 'V' (Fine wheel) , Polishing (Smooth wheel).
• AUTOMATIC CLAMPING SYSTEM : Three different steps for clamping lenses.

• AUTOMATIC GRINDING PROCEDURE FOR PC LENS : Microcomputer control for processing of PC lenses. "ROUGH GRINDING : Automatically stops suppling water and Dry grinding starts." “FINE GRINDING : Automatically supply water.” Easy to operate ; only needs to press “LENS" Button to select the PC OK while operating.

• Metal & Plastic frame processing
• Different rim design for your selection.
• Select different wheel as per material of lens, save time.
• Adjust the controller when the wheel are normal or wear and tear. can increase or decrease the minimum setting unit is 0.05mm.
• cut lens re-grind pg possible.
• USE GRINDING WHEELS EFFECTIVELY : The grinding place can be moved to increase the life of the wheel, effectively utilize the width of the abrasive wheel.

Specifications :-

• TASK MODE - Auto
• GRINDING WHEELS - 4 types of wheels ( Polishing, Glass, 'V' & PC Wheel )
• WORKABLE LENSES - Glass, CR-39, PC
• LATITUDE PROCESSING - 18mm ~ 75mm
• POWER SOURCE - AC 220v 50Hz
• RATED POWER - 500W

•
  DIMENSIONS - 530 (L) x 500 (W) x 400 (H) in mm
• NET WEIGHT - 49 Kgs.

ADVANTAGE :-

1. Automatic
2. Poly Carbonate Lens
3. Glass Lens
4. Cr- 39 Lens
5. Table

TERMS & CONDITIION

LOGISTICS
-    Instrument will be Dispatched by Courier / Bus / Transport / Train / Air on Extra Charges as per your choice.
-    It will be sent by TOPAY BASIS payable directly to Logistic Company.

INSTRUMENT INSTALLATION
-    FREE – WhatsApp Video Call Guidance for Installing the Instruments is Free
-    If Required: Onsite Installation - Rs. 5000 per day + Gst Charges Extra.

INSTRUMENT WARRANTY
-    SPARE PARTS Warranty for 1 Year ONLY.
-    Free Service at Chennai Office for 1 Year ONLY.
-    If required Onsite Visit Service: Rs. 5000 per day + Gst Charges Extra.
-    Instrument Courier: Sending UP & down Charges Extra.

SERVICE & REPAIR AFTER WARRANTY OVER
-    Offsite Service Charge (at Chennai Office) - Rs. 2000 + Gst + Spare Parts + Courier Charges Extra.
-    Onsite Visit Service (at Customer place) - Rs. 5000 per day + Gst + Spare Parts Charges Extra.
